POS sheet

Setting options for POS sheet

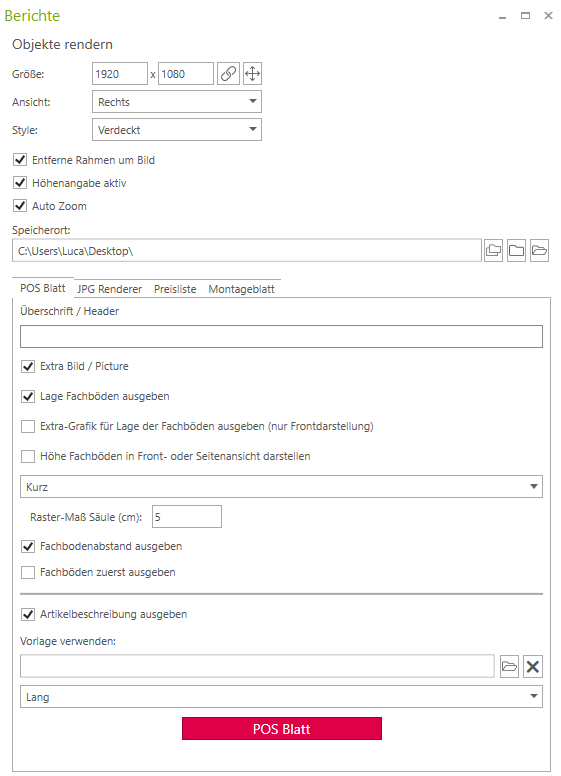

In the Shopfitting tab, open the Reports window.
Select POS Sheet from the various tabs JPG Renderer, Price List and Assembly Sheet.
In this window you have various presets available, such as:

• • • • Set default resolution, via this icon

• Keep aspect ratio, will be executed if the checkmark is set, otherwise
• Height and width (pixels), here you set the resolution.
• View, in this dropdown menu select the camera perspective from which a preview image will be created for the POS sheet
• Style, in this dropdown menu you choose the render style for the preview image
• Height specification active, outputs height specifications in the assembly sheet
• Remove frame around image, removes the preview image
• Auto Zoom, uses a uniform zoom factor for image creation
• Location, here the destination for saving the file is specified
• Output layer of shelves, in this dropdown menu you can select whether shelves with short or long description will be output if you check the box.
• Raster dimension column, here you specify the jump of the slot in cm
• Output shelf distance
• Output item description
• Use template, here you can select a template file
• Short text description or long text description
• Output shelves first
• By clicking the POS Sheet button the file will be saved in the destination folder
