Hook goods placement

To add goods to the hook the following steps are performed:

1. selection of the hook:

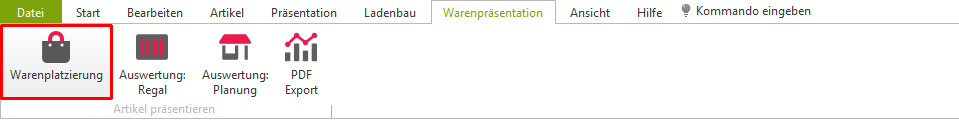

To fill the hooks, the shelf is selected first. Double-click on the desired hook to start loading. In the Shopfitting tab, select the item Placement of goods, whereupon the window for the placement opens.

2. read out shelf data:

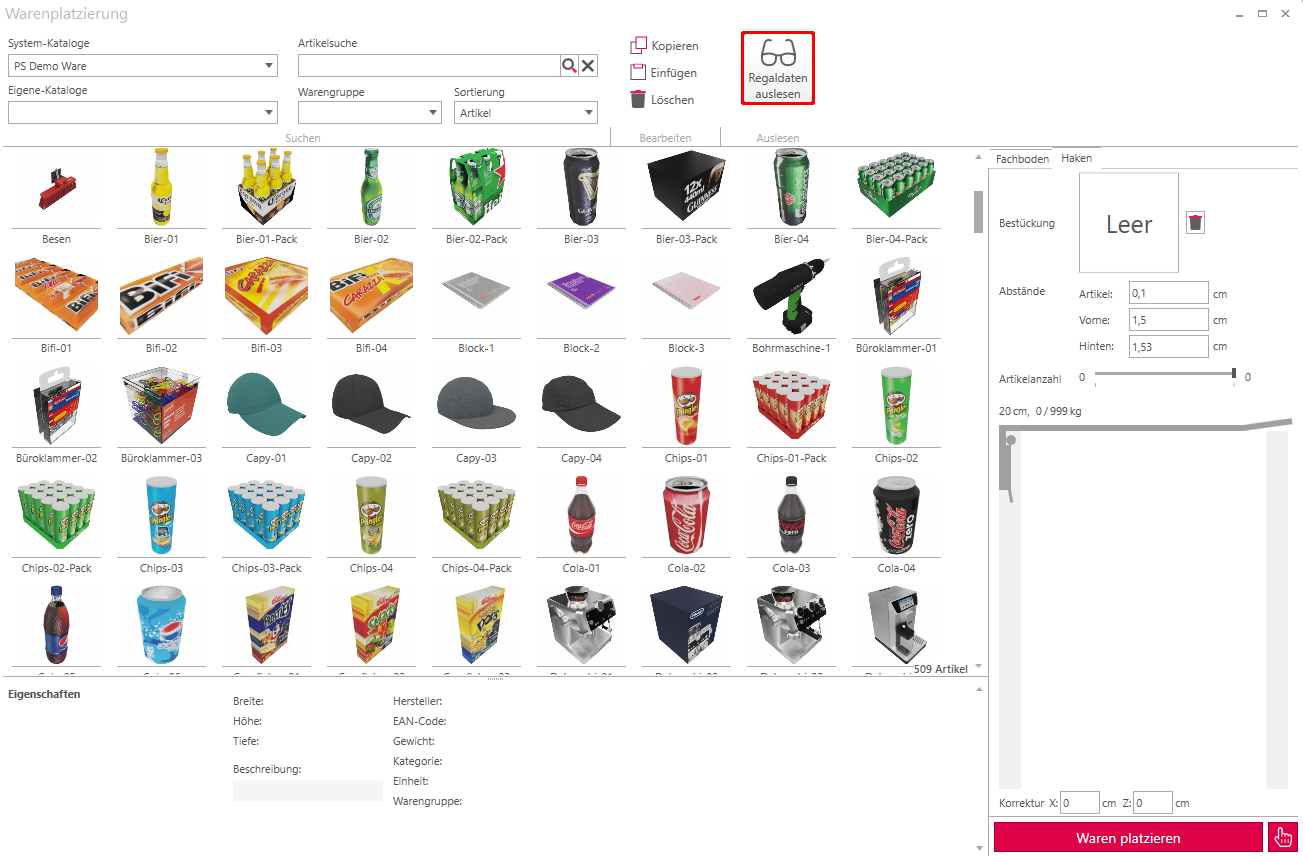

If the check mark is selected, the check mark can be imported by clicking on Read shelf data.

3. place goods:

Now the selected object can be dragged and dropped onto the hook. The entire hook is automatically populated with the object.

Adjustment of the goods on the hook

The spacing can be used to further individualize the goods on the hook.

Article: regulates the spacing between articles.

Front: distance of the fabric from the front end of the hook.

At the back: Distance of the goods from the shelf.

The Number of items slider controls the amount of goods on the hook. It can be set at the maximum so that the goods do not exceed the hook. In this example, the item can be stacked next to each other a maximum of 6 times, otherwise it will exceed the hook.

Delete an object

To delete an object, select it by clicking on the rectangle and remove it by pressing the DEL key or clicking on the trash can.

4. place the goods:

By pressing the Place goods button, the goods will now be placed on the shelf.
